Product Information
A gas generator (also called a gas generator) is a special equipment that uses coal or coke as raw materials, air and water vapor as gasification agents, and performs oxidation and reduction reactions in a fixed bed to produce mixed gas. It can be widely used in various gas-fired industrial kilns in metallurgy, machinery, chemical, building materials, refractory, ceramics, and other industries or to replace the original coal-fired industrial kilns. Such as heating, sintering, annealing, drying, heat treatment, melting and tunnel, push plate, roller table, back flame, and other kilns.
Model parameter
参数parameter | Φ1.5 | Φ2.0 | Φ2.4 | Φ2.6 | Φ3.0 | Φ3.2 |
炉膛内径Inner diameter of furnace（m） | 1.5 | 2.0 | 2.4 | 2.6 | 3.0 | 3.2 |
炉膛截面积 Furnace cross-sectional area （㎡） | 1.77 | 3.14 | 4.52 | 5.3 | 7.07 | 8.04 |
水套工作压力Working pressure of water jacket（Mpa） | 0.294 | |||||
水套蒸汽产量Jacket steam production（Kg/h） | ~200 | ~340 | ~420 | ~470 | ~550 | ~650 |
燃料块度及煤种Fuel lumpiness and coal type（mm） | 6-13、13-25、25-50 焦炭、无烟煤、不粘结烟煤 Coke, anthracite, unbonded bituminous coal | |||||
燃料消耗量Fuel consumption（Kg/h） | 370~530 | 630~950 | 1000~3000 | 1430~1630 | 2000~2670 | 2200~2750 |
煤气热值Gas calorific value（低low）（KJ/Nm³） | 5225~5670 | |||||
燃气产量Gas production（Nm³/h） | 1120～1600 | 1900～2850 | 3000～4000 | 4300～4900 | 6000～8000 | 7000～9000 |
炉出口煤气温度Furnace outlet gas temperature（℃） | 400~500 | |||||
炉底鼓风压力Furnace bottom blast pressure（Pa） | <2450 | <3000 | <4000 | <4000 | <6000 | <6000 |
The inherent shortcomings of the original single-stage gas producer. The gasification efficiency and the calorific value of the gas are both increased by 10%-15%, and the carbon content of the ash and slag is reduced by 10%-20%, which greatly reduces the labor intensity of the operators and equipment failures. Rate.
Application cases
Energy-saving improved single-stage gas furnace single-stage gas generators are widely used in various metal heat treatment furnaces, ceramic furnaces, aluminum melting furnaces, copper refining furnaces, forging furnaces, metal product heating furnaces, hot-dip galvanizing furnaces, drying furnaces, annealing furnaces, Chemical industry, refractory industry, cable industry, boiler industry, etc.

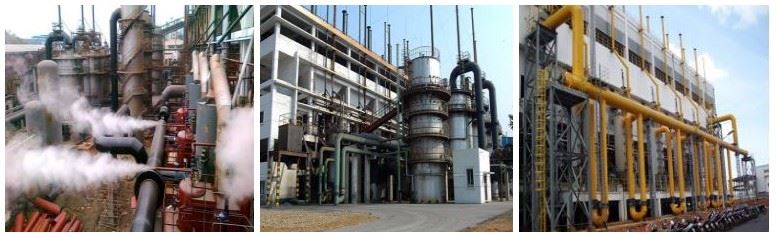

Pingguo Aluminum Waste Heat Recovery System
Guangxi Huayin Aluminum Industry Single-stage Gas Generator
Vietnam Lintong alumina single-stage gas station
