Product introduction
Improve Single-stage Gas Furnace changes the inherent disadvantages of the original single-stage gas furnace. The gasification efficiency and the calorific value of the gas are increased by 10% -15%, and the carbon content of ash and slag is reduced by 10% -20%, greatly reducing the labor intensity of operators and equipment failure rates.

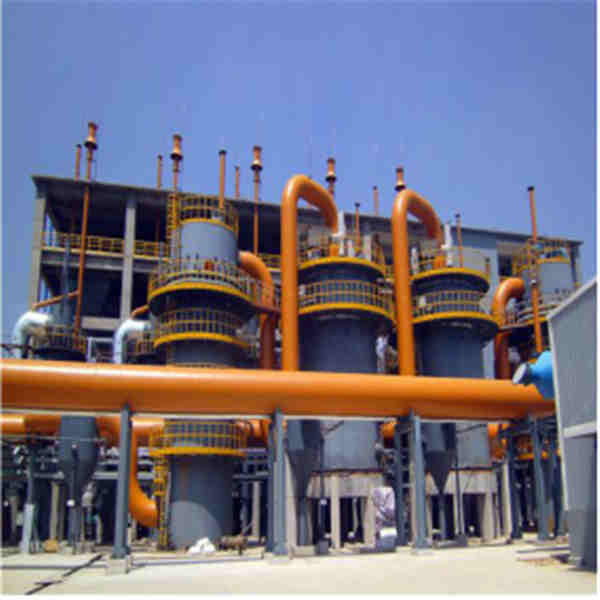

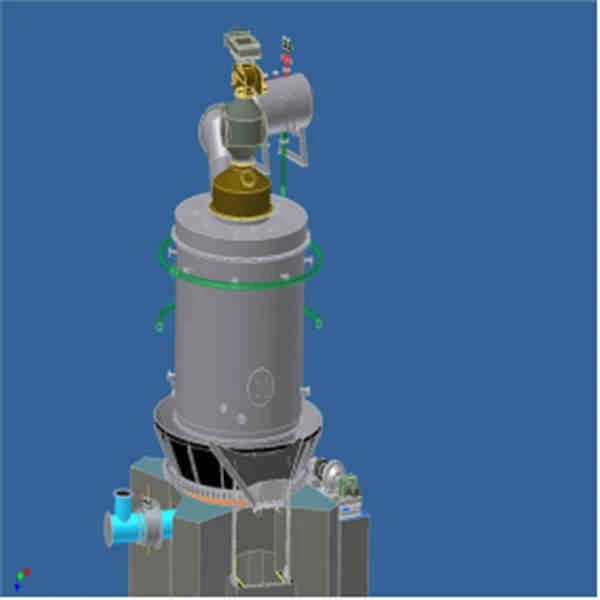

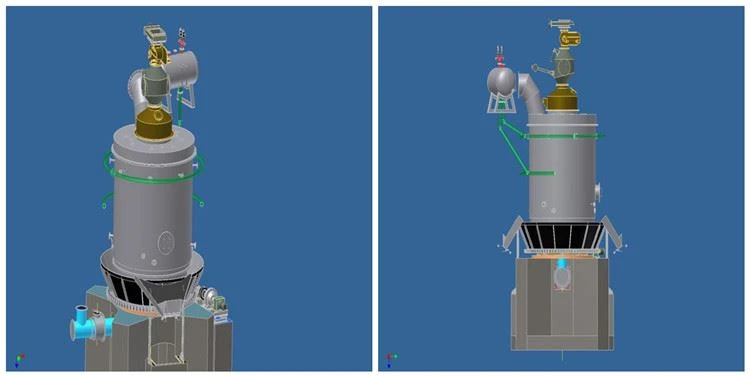

Furnace body structure

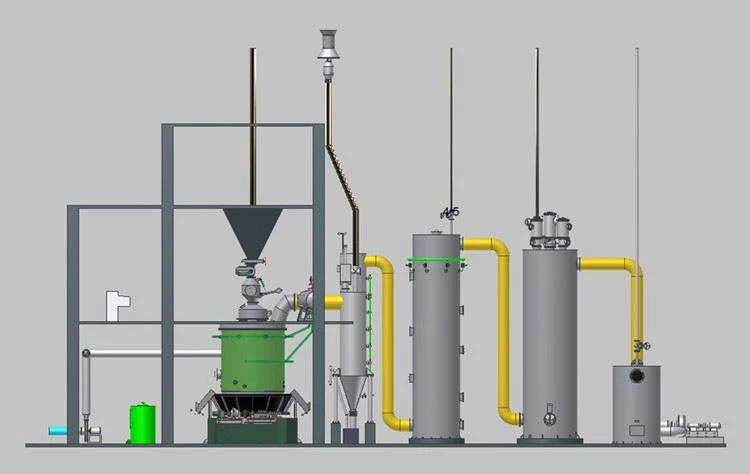

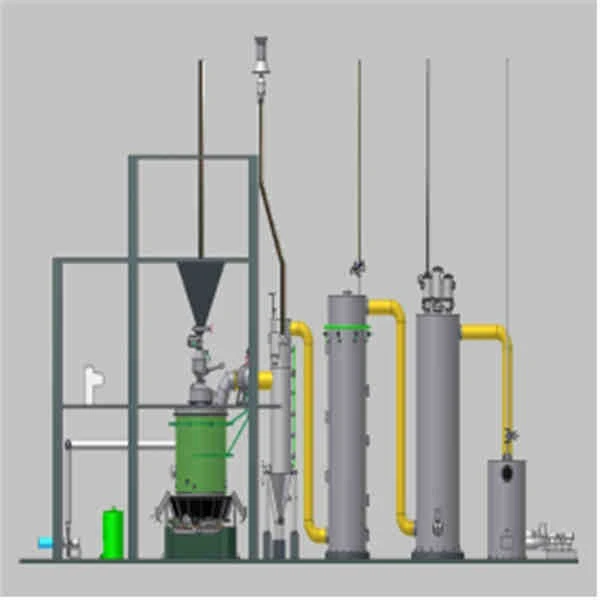

Improve Single-stage Gas Furnace Technological process
After entering the coal field, the raw coal is broken, screened, and transported to the coal storage layer (the coal storage bunker). Then, the coal is added to the furnace by the automatic coal feeder, transferred to the gasification section, and reacts with the gasification agent to generate the gas (the gasification agent is composed of air and steam). The generated gas is exported via the outlet of the gasification section and enters the quenching and cooling tower (double vertical pipe). Then, it enters the scrubbing tower for further cooling and dust removal. Finally, after entering the pressurizing machine system for dehydration and desulphurization, the purified gas is sent to the gas supply point.
Application of Improve Single-stage Gas Furnace
The improved single-stage gas generator is widely used in various metal heat treatment furnaces, ceramic furnaces, aluminum melting furnaces, copper refining furnaces, forging furnaces, metal product heating furnaces, hot-dip galvanizing furnaces, drying furnaces, Annealing furnaces, chemical industry, refractory industry, cable industry, boiler industry, etc.
Feature of Improve Single-stage Gas Furnace
1. less investment
2. large gas production
3. high heat utilization rate
4. complete gasification
5. strong coal adaptability
6. simple operation
Product Specification
Parameter | Φ1.5 | Φ2.0 | Φ2.4 | Φ2.6 | Φ3.0 | Φ3.2 |
furnace inner diameter（m） | 1.5 | 2.0 | 2.4 | 2.6 | 3.0 | 3.2 |
furnace sectional area（㎡） | 1.77 | 3.14 | 4.52 | 5.3 | 7.07 | 8.04 |
Working pressure of water jacket（Mpa） | 0.294 | |||||
steam output of water jacket（Kg/h） | ~200 | ~340 | ~420 | ~470 | ~550 | ~650 |
Fuel fragmentation and coal type（mm） | 6-13,13-25,25-50 non-caking coal,weakly caking coal,long flame coal ,lignite and gas coal | |||||
Fuel consumption（Kg/h） | 370~530 | 630~950 | 1000~3000 | 1430~1630 | 2000~2670 | 2200~2750 |
Coal gas calorific value (low)（KJ/Nm³） | 5225~5670 | |||||
Coal gas production（Nm³/h） | 1120～1600 | 1900～2850 | 3000～4000 | 4300～4900 | 6000～8000 | 7000～9000 |
Gas pressure at furnace outlet（℃） | 400~500 | |||||
Blast pressure at furnace bottom（Pa） | <2450 | <3000 | <4000 | <4000 | <6000 | <6000 |
Note: gas production and calorific value are related to coal type and coal quality | ||||||
FAQ
Q1.Who are we?
A: We are a manufacturer engaged in various types of coal-to-gas equipment and its supporting dust removal equipment, sewage treatment equipment, desulfurization equipment, B-level boilers, and other equipment manufacturers; and design complete sets of electrical and automation systems; provide product design, One-stop service from manufacturing, installation, debugging to after-sales service.
Q2.What services can we provide?
A: 1. Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
2. Accepted Payment Currency: USD, CNY;
3. Accepted Payment Type: T/T, L/C, Western Union;
4. Language Spoken: English, Chinese, Spanish, French.
Q3.Why should you buy from us and not from other suppliers?
A: With less investment, large gas production, high heat utilization rate, complete gasification, strong coal adaptability, and simple operation.

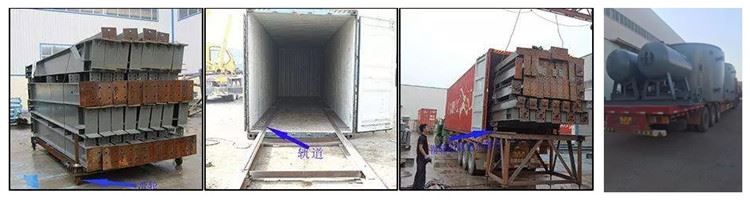

Packing & Shipping
