Product Parameter

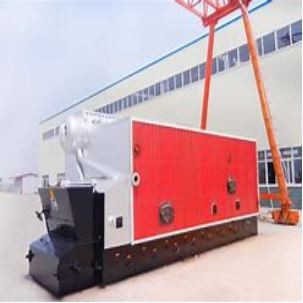

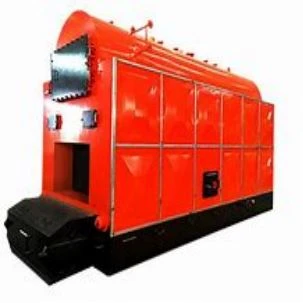

Coal Fired Power Plant Steam Boiler adopts a duel mode of chamber combustion plus layer combustion. The combustion equipment includes the rice husk spraying device and chain grate. The bulk-specific weight is about 120kg/m3, and water content is around 8-15%, which is not good for sufficient burning.
There are two rice husk spraying devices on the lower front wall of the furnace, the combustion chamber is rectangular. High thermal load promotes the ignition and combustion of rice husk. The spraying mouth is about 3m above the chain grate, and the rice husk is sprayed into the furnace. The rice husk is heated and dried during the flying tour, in a suspended combustion state. The unburnt rice husk falls on the grate and is burnt out.
Company Profile

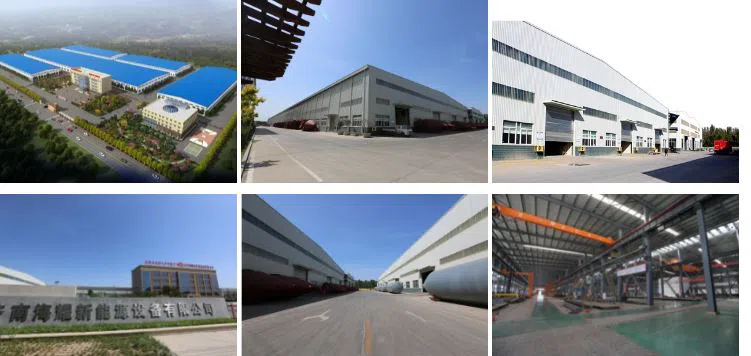

Jinan Huangtai Gas Furnace Co., Ltd. is a manufacturing enterprise. We mainly supply coal gasifiers and various boilers. In addition, you can also enjoy package service from project support, product design, manufacture, installation, and commission to “24 hours” after-sale service.
FAQ
1. Who are you?
We are a leading enterprise in the coal chemical industry and metal manufacturing industry. Our products encompass gasifiers, circulating fluidized bed gasifiers as well as their supporting purification and dust removal equipment, coal-fired power Plant Steam Boiler, and waste heat recovery equipment. We have rich experience in production.
2.How can you guarantee product quality?
(1) Eight production lines make the control process, the product steam output is high, the running stability.
(2) With advanced testing instruments and testing equipment as the guarantee of product quality qualified.
3. Why choose you?
China's national high-tech enterprises have a number of inventions and utility model patents. And we have 30 years of experience in coal gasification technology.
