Product Introduction

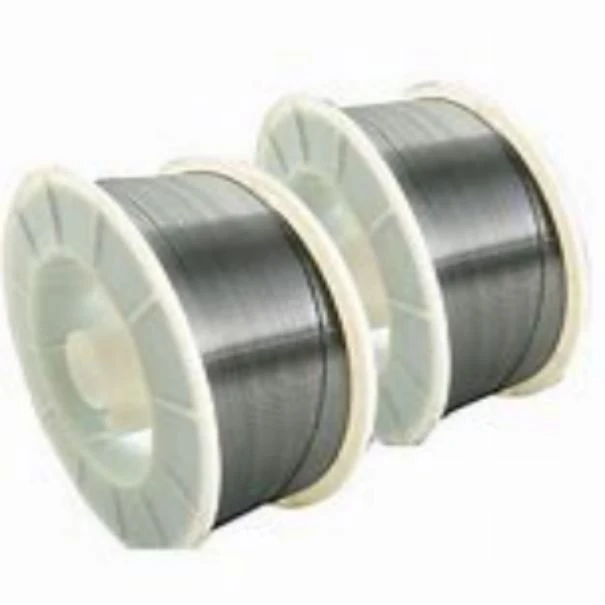

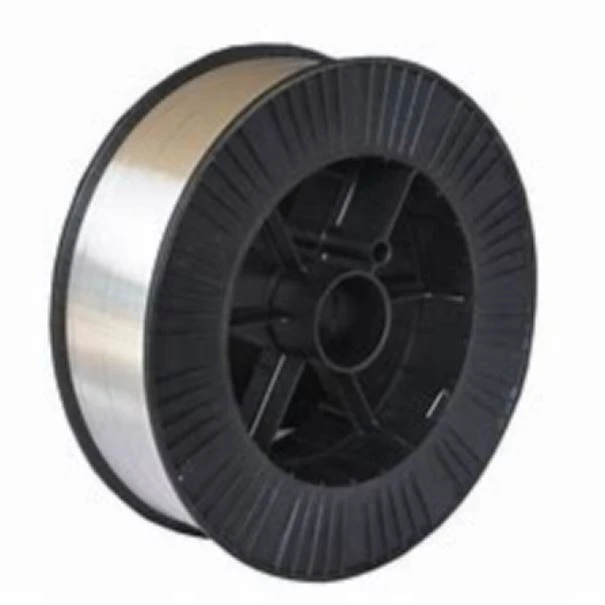

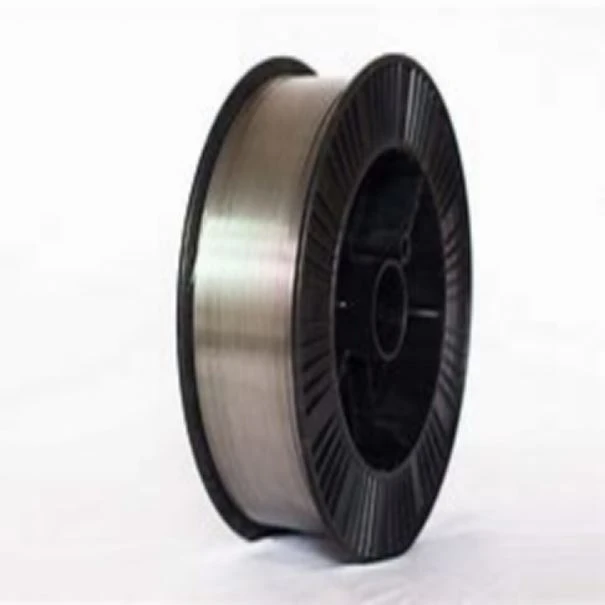

High Strength Gas-shield Welding Wire. is a kind of high strength gas-shield welding wire. The mixed gas Ar+20% CO2 can be used as shielding gas. It has soft arc, stable burning, and fewer spatters. The bead has higher impact toughness.
Product Detail
| Mechanical properties of the deposited metal | ||||
Yield strength ReL/Rp0.2(Mpa) | Tensile strength Rm(Mpa) | Elongation δ5(%) | Impact test | |
| Temperature(℃) | Impact Energy KV₂(J) | |||
| 730 | 840 | 24 | -20℃ | 90 |
| Packing terms | ||||||
| Diameter | 1.2mm | 1.6mm | 2.0mm | 2.4mm | 3.2mm | 4.0mm |
| TIG/1000mm*5kg/tube | √ | √ | √ | √ | √ | √ |
| TIG/1000mm*10kg/tube | √ | √ | √ | √ | √ | √ |
Product Application
Suitable for welding high strength structures with the tensile strength of 790MPa. High Strength Gas-shield Welding Wire. can be used for welding some key structures, such as pressure vessels, construction machinery, hoisting machinery, ships, mining machinery, etc.
About Us

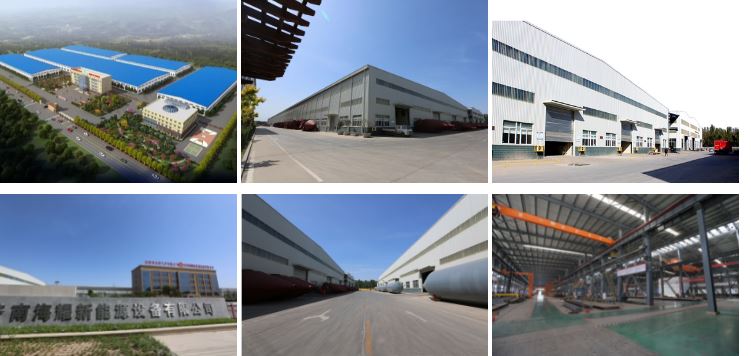

The company occupies an area of 300 acres, the main factory building area is 23,800 square meters. We supply large quantity various kinds of welding wires.
