Product Feature

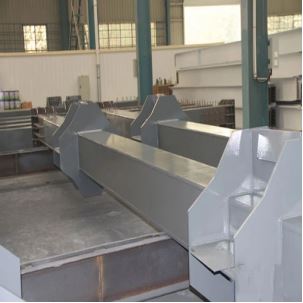

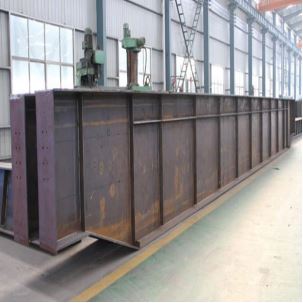

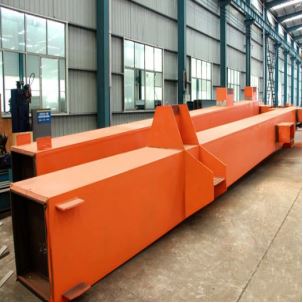

Steel Structure Heavy Steel Box Column
1. High material strength, lightweight.
2. Steel toughness, good plasticity, uniform material, and high structural reliability.
3. High degree of mechanization of steel structure manufacturing and installation.
Production Introduction

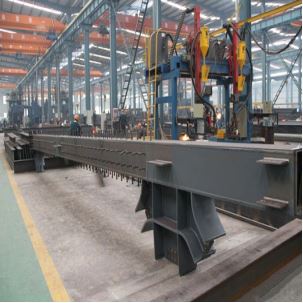

The box-shaped column blanking uses a CNC flame cutting machine to cut the column plate and then open the bevel. After the blanking is completed, the straightening correction is carried out. To ensure the accurate assembly of the column body plate, it is necessary to prepare and assemble the tired film. The assembly sequence is: first, the above cover plate As a benchmark, the assembly line of the transverse partition and the side webs is released, U-shaped assembly is carried out, and the lower cover is finally assembled. After the assembly is completed, the welding is carried out. The steel plate is welded with a pilot arc plate. After the box-shaped column is welded, it is straightened and corrected, and then the end is cut with an end milling machine. The box-shaped column is painted in strict accordance with the standards for rust removal and oil brushing. After the box-shaped column is completed, the full-time quality inspector will conduct an inspection and numbering.
Material requirements
The steel structure will be subjected to various forms of action (load, uneven foundation settlement, temperature, etc.) during use, so the steel should have good mechanical properties (strength, plasticity, toughness) and processing properties (cold and hot working and welding) Performance) to ensure the safety and reliability of the structure. There are many types of steel, but only a few meet the requirements of steel structure, such as Q235 in carbon steel, l6Mn in low alloy steel, and 20 manganese vanadium steel (20MnV) for high-strength bolts.
Production Equipment

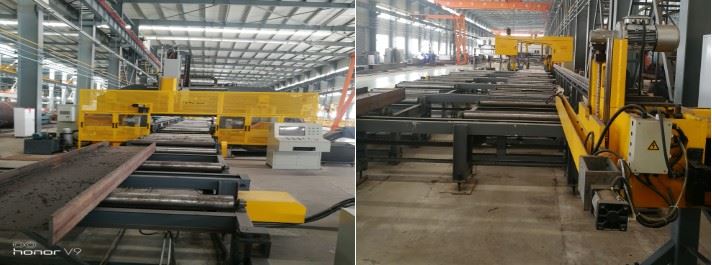

Outer ring seam welding manipulator Drum horizontal CNC drilling machine
The company has 6 independent steel structure production lines. The annual production capacity of steel structure is up to 300,000 tons.
