Product introduction
Improved oxygen-enriched circulating fluidized bed gasifier uses 0~12 mm pulverized coal as raw material, coal types include lignite, long-flame coal, non-stick bituminous coal, weak viscosity bituminous coal, etc. The reaction temperature in the gasifier furnace is uniform, up to about 1000 degrees Celsius, no tar, phenolic substances are generated, the cooling adopts indirect cooling method, the dry slag bag dust removal, no waste water generation.
Product parameter
| Type | CO | H2 | N2 | CO2 | CH4 | H2S+COS |
| 70% concentration oxygen enrichment | 36~43 | 36~43 | 9~15 | 10~15 | 1.0~3.5 | 0.1~0.3 |
| pure oxygen gasification | 37~45 | 37~45 | 0.5~2.0 | 10~18 | 1.0~3.5 | 0.1~0.3 |
According to different fuels and users' different needs for gas effective gas, gasifiers can be flexibly selected in air, air + water vapor, oxygen-enriched air/pure oxygen + steam. Pressurized gasification can also be used according to the syngas pressure demand of downstream users.
Product Application

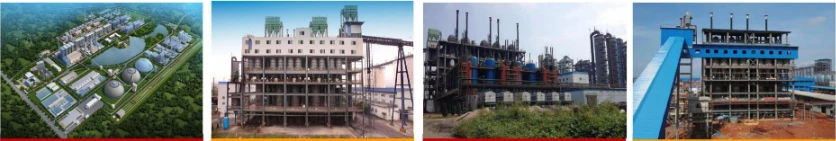

Improved oxygen-enriched circulating fluidized bed gasifier has wide applications, and is suitable for chemical, steel, non-ferrous metals, ceramics, glass, and other industries.
