Product Introduction
The disc of the wafer butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of the wafer type butterfly valve, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0° and 90°, which can play a role in flow regulation. When the butterfly plate rotates to 90°, the valve reaches the maximum opening.
Product Introduction

Wafer Type Butterfly Valve
1. Wafer Type Butterfly Valve is simple in structure.
2. Small in size.
3. Light in weight.
4. And it only consists of a few parts. And it only needs to rotate 90° to open and close quickly, the operation is simple, and the valve has good fluid control characteristics.
Product Feature
①The unique design of three-way eccentricity enables frictionless transmission between the sealing surfaces and prolongs the service life of the valve.
②Elastic seal is produced by torque.
③The ingenious wedge-shaped design enables the valve to have the automatic sealing function of closing and tightening, and the sealing surfaces have compensation and zero leakage.
④Small size, lightweight, light operation and easy installation.
Production Equipment

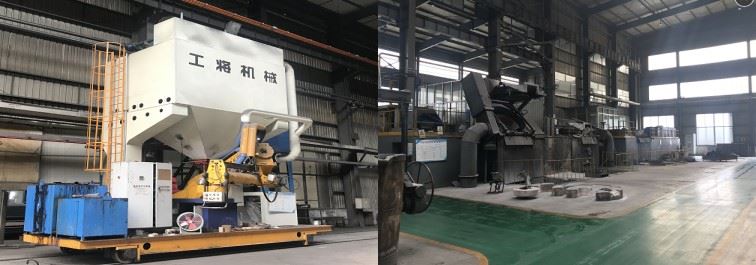

Sand mixer Medium frequency electric furnace
Our company is equipped with various advanced equipment. A set of 3T one-to-two electric furnaces in the United States, (each unit can smelt 3T molten iron per hour), and a set of domestic 0.75T electric furnaces each unit can smelt 0.75T molten iron per hour). Our company has 4 sand mixers, which are suitable for single-piece mass production of large and medium-sized castings.
