Production Introduction
The swing check valve adopts a built-in rocker swing structure. All the opening and closing parts of the valve are installed inside the valve body and do not penetrate the valve body. Except for the sealing gasket and sealing ring at the middle flange, the whole There is no leakage point, preventing the possibility of valve leakage. The swing arm of the swing check valve adopts a spherical connection structure at the connection between the rocker arm and the valve clack, so that the valve clack has a certain degree of freedom within the range of 360 degrees, and there is an appropriate trace position compensation. Suitable for clean medium, not suitable for medium containing solid particles and high viscosity.

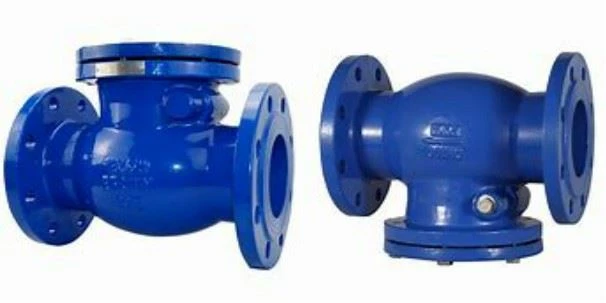

Production Display
Product Application
Swing check valve is suitable for nominal pressure PN1.0MPa~42.0MPa, Class150-2500; nominal diameter DN15~1200mm, NPS1/2~48; working temperature -196~540℃ on various pipelines to prevent The medium flows back. By selecting different materials (WCB, CF8(M), CF3(M), 1Gr5Mo, 15CrMo1V, it can be applied to water, steam, oil, nitric acid, acetic acid, strong oxidizing media and urea, and other media. Mainly used in Petroleum, chemical, pharmaceutical, fertilizer, power, and other pipelines.
Our Honor
With advanced testing equipment and advanced spectral quality testing equipment, the Swing Check Valve has passed ISO9001 quality assurance system certification.

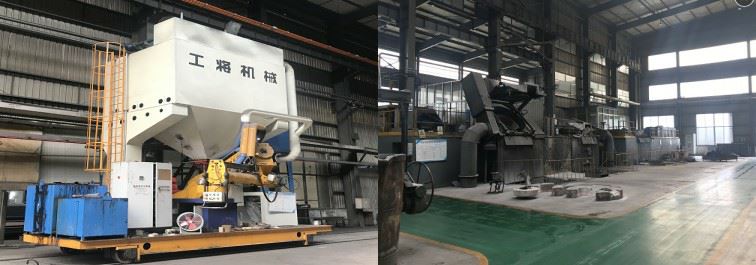

Production Equipment
Sand mixer Medium frequency electric furnace
Our company has a set of Amerian 3T one-to-two electric furnace and a set of domestic 0.75T electric furnace. In additon, we have 4 sand mixers, one fixed double- arm continuous sand mixer 25T and 5T each, and two mobile 12T sand mixers for single-piece mass production of large and medium-sized castings.
