Product Introduction
The Q47F forged steel fixed ball valve system divides the valve body into three parts along the section perpendicular to the axis of the valve passage at the two valve seats. The whole valve is symmetrical along the central axis of the valve stem. It is mainly used for cutting, distribution and Change the direction of medium flow. Its large pivot structure ensures the accurate center position of the sphere under high pressure, which ensures the good operation performance of the valve; the standard valve seat adopts a spring structure, which pushes the valve seat to the sphere, ensuring good two-way sealing performance of inlet and outlet; With a discharge valve, the middle cavity of the valve body can be discharged to the outside; the pivot adopts an anti-blowout protection structure to effectively prevent leakage; the bearing with low friction coefficient minimizes the torque and facilitates the opening and closing of the valve; the valve stem and the valve body are effective contact, so that the anti-static grounding device has superior performance and so on.

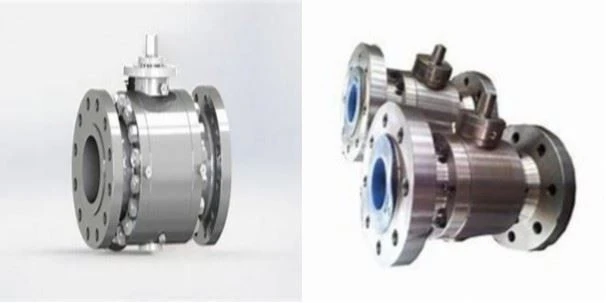

Product Dispaly
Product Feature
1. The valve seat adopts a spring structure, which pushes the valve seat to the ball to ensure good low pressure sealing performance.
2. Before the ball valve is fixed, the valve seat can be sealed after the valve, that is, the so-called two-way sealing feature. Using the built-in discharge valve, the central cavity of the valve body can be discharged to the outside.
3. The pivot adopts an anti-blowout protection structure, bearings with low friction coefficient, etc. It has excellent performance, high reliability, and is widely used.
Product Application
Forged steel fixed ball valve is suitable for: chemical, petroleum, natural gas, metallurgy, and other industries and long-distance natural gas pipelines containing hydrogen sulfide medium, many impurities and serious corrosion.
