Product Information
Wood Gas Generator is a gasification unit that converts timber or charcoal into wood gas, a syngas consisting of atmospheric nitrogen, carbon monoxide, hydrogen, traces of methane, and other gases, which – after cooling and filtering – can then be used to power an internal combustion engine or for other purposes.

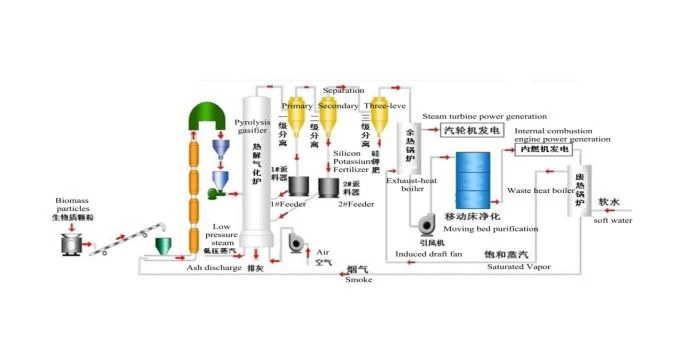

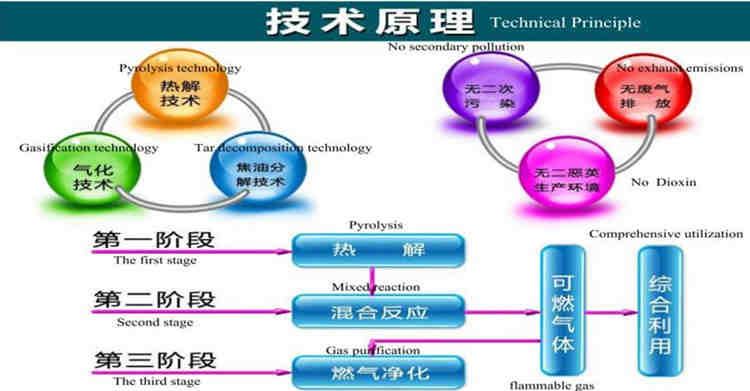

Process of Wood Gas Generator
(1) Raw material pretreatment
After being crushed by the pulverizer, the biomass raw materials enter the drying and lifting device, and the biomass particles are dried and upgraded using low-temperature flue gas at about 120°C to remove moisture.
(2) Pyrolysis and gasification reaction
(3) Gas purification
The gas at the outlet of the gasifier is returned to the bottom of the fluidized bed as the raw material for gasification through the semi-coke and carrier through the first and second horizontal gas-solid high-efficiency separation of the gas and solid; the fine powder separated by the three-stage separator is sent as silicon potash fertilizer. After dust removal, the gas enters the waste heat boiler to recover heat, and then is purified by a two-stage moving bed, cooled, and sent to the power generation system.
(4) Gas power generation
Advantages of Wood Gas Generator
1. Less investment.
2. Large gas production.
3. Simple operation.
4. high heat utilization rate
5.complete gasification
6. strong coal adaptability
Why should you choose us?
With advanced technologies and excellent quality, our company provides consumers with a package service from project support, product design, manufacture, installation, and commission to a “24 hours” after-sale service.

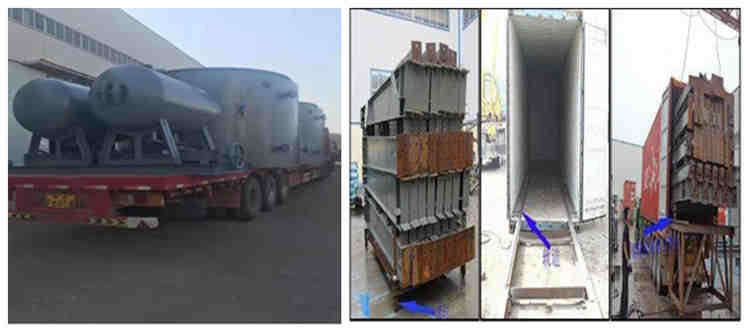

Packing & Shipping
